Seismic Tomography in Bakersfield – Subsurface Imaging for Geotechnical Certainty

The southern San Joaquin Valley conceals a complex subsurface shaped by the Kern River Fan and active folding at the edge of the Sierra Nevada. In Bakersfield, near-surface geology can shift from dense alluvial gravels to compressible clays within a single parcel, and the groundwater table beneath the city hovers between 15 and 30 feet across much of the metropolitan area. Seismic tomography cuts through that ambiguity. By measuring P-wave and S-wave travel times along dense geophone arrays, the method produces a continuous velocity cross-section that reveals stratigraphic contacts, buried channels, and weathered zones without a single borehole. For developers working near the Kern River or within the city’s expanding northwest corridor, this non-invasive imaging often replaces two or three exploratory borings, saving schedule time and reducing mobilization costs. When the target is bedrock depth for pile design or layer stiffness for liquefaction analysis, seismic tomography delivers data that conventional drilling alone cannot match.

A single 500-foot seismic line across a Bakersfield parcel often replaces three boreholes while mapping lateral velocity changes that a grid of borings would miss.

Methodology and scope

Bakersfield’s growth since the 1950s has pushed construction onto increasingly marginal ground—former marshlands near the Kern County Fairgrounds, alluvial fan toes east of Highway 99, and terrace deposits that mantle the Kern River Bluff. Each of these settings presents a different velocity signature. Refraction tomography excels where velocity increases with depth, which is typical of the compacted Pleistocene gravels underlying much of downtown. Reflection profiling, in contrast, images velocity inversions and low-velocity lenses that refraction misses, making it the better choice where saturated silts or artesian conditions are suspected. Our field crews deploy 24- or 48-channel seismographs with 4.5 Hz geophones spaced as tight as 5 feet, generating a shot record every 10 to 20 feet using a weight drop or accelerated impact source. The raw gathers are processed through iterative ray-tracing inversion, and the final tomogram is delivered as a color-contoured velocity section overlaid on survey line coordinates. When the question is lateral continuity of a bearing stratum, we often pair the seismic line with a CPT sounding at the midpoint for direct correlation. For projects requiring deformation modulus and Poisson’s ratio, surface-wave inversion extracted from the same dataset feeds into MASW analysis without additional field time.

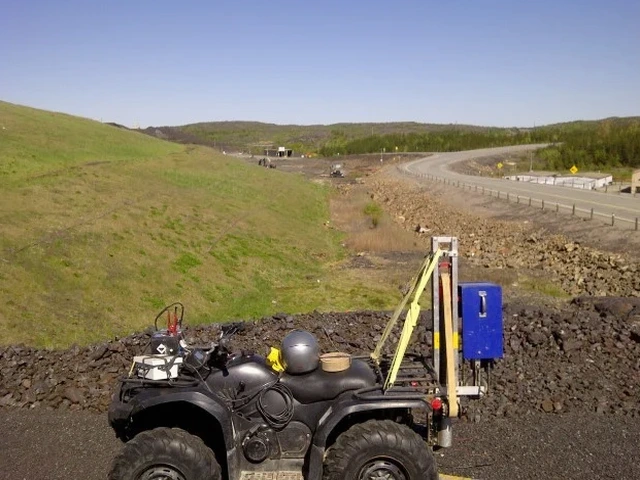

Seismic Tomography in Bakersfield – Subsurface Imaging for Geotechnical Certainty

Local considerations

Two neighborhoods barely three miles apart illustrate the risk of guessing at subsurface conditions in Bakersfield. Subdivision tracts in the southwest, near the Buena Vista Lake bed, sit on Holocene lacustrine clay with shear-wave velocities below 600 ft/s, a profile that pushes site classification into ASCE 7 Class E or F. Drive northeast toward the Bluffs, and the ground shifts to Pleistocene Riverbank Formation gravels with velocities exceeding 1,200 ft/s and a stiff Class C profile. Design a foundation assuming the faster material and you inherit settlement risk on the clay; design for the clay and your gravel-site structure ends up overbuilt by 30 percent. Seismic tomography maps these velocity contrasts across the entire footprint before a single footing is sized. For critical facilities—healthcare buildings along Truxtun Avenue, logistics warehouses near Meadows Field—the cost of a seismic survey represents less than one percent of structural cost while eliminating the most expensive geotechnical unknown: differential settlement driven by unseen lateral heterogeneity.

Need a geotechnical assessment?

Reply within 24h.

Email: contact@geotechnicalengineering1.com

Explanatory video

Applicable standards

ASTM D5777-18 – Standard Guide for Seismic Refraction, ASTM D7128-18 – Standard Guide for Seismic Reflection, ASCE 7-22 Chapter 20 – Site Classification Procedure

Associated technical services

01

Refraction tomography for shallow site characterization

Ideal for foundation design, pipeline corridors, and cut-slope evaluation. We acquire dense shot records along linear or grid arrays, invert for P-wave and S-wave velocity, and map the top of bedrock or competent bearing strata to within 5 percent of true depth. Deliverables include a 2D tomogram with interpreted geologic boundaries and a direct ASCE 7 site class recommendation per Section 20.3 of the standard.

02

Reflection profiling for deep basin imaging

Applied when the target lies beyond 100 feet or when velocity inversions are expected—common in the interbedded sand-clay sequences beneath central Bakersfield. Higher-frequency geophones and stacked CDP processing resolve stratigraphic detail that refraction alone cannot. This method is frequently specified for groundwater basin studies, fault-rupture investigations near the Kern Front, and deep excavation planning.

Typical parameters

ParameterTypical value
MethodologySeismic refraction and reflection tomography, surface-wave inversion
Typical survey depth30 to 150 ft below ground surface (refraction); up to 500 ft (reflection)
Geophone spacing5 to 20 ft, depending on target resolution
Energy sourceAccelerated weight drop, sledgehammer, or Betsy gun (urban settings)
Output parametersP-wave velocity (Vp), S-wave velocity (Vs), Poisson’s ratio, dynamic modulus
Data deliverables2D velocity tomograms, layered models, ASCII travel-time files, ASCE 7 site class recommendation
Typical project duration1 to 3 field days plus 5 business days for processing and reporting

Frequently asked questions

What does a seismic tomography survey cost for a typical Bakersfield commercial lot?

For a standard commercial parcel in the Bakersfield area, seismic tomography surveys generally fall between US$2,530 and US$5,730 depending on line length, target depth, and whether refraction only or combined refraction-reflection is required. The price includes field acquisition, data processing, iterative inversion, and a stamped engineering report with velocity cross-sections and ASCE 7 site classification.

Can seismic tomography work on paved surfaces in urban Bakersfield?

Yes, with the right coupling. On asphalt or concrete we bolt geophones to the pavement using quick-set gypsum or drill shallow anchor holes. For the source, an accelerated weight drop or a Betsy gun works well on hard surfaces without damaging the pavement. Traffic vibration can degrade data quality, so urban surveys are often run at night or on weekends when background noise is lower.

How deep can refraction tomography see in the San Joaquin Valley sediments?

Practical refraction depth is roughly one-fifth to one-quarter of the maximum spread length. With a 230-foot spread, which is typical for our Bakersfield surveys, we routinely image to 50–60 feet. Reflection profiling extends that range significantly—subsurface horizons at 300 to 500 feet are achievable with longer spreads and higher-energy sources, making it the preferred method for basin-structure investigations.

Do you provide the ASCE 7 site class directly from the seismic velocity data?

Absolutely. We compute the time-averaged shear-wave velocity over the upper 100 feet (Vs30 or Vs100) directly from the processed velocity model and assign the corresponding ASCE 7-22 site class. If the investigation depth is less than 100 feet, we extrapolate using available borehole data or regional velocity trends, and we clearly state the extrapolation method and its uncertainty in the report so the structural engineer can apply it appropriately.
